nanoMCA-II-SP
Ultra Low Noise Real-Time Digital Pulse Processor (DPP) and Scintillation Detector Spectrometer in One Package. The handheld nanoMCA-II-SP is the ultimate device in the nanoMCA family. It is a more powerful version of the original nanoMCA-SP device, and includes a built-in PMT preamplifier, as well as three additional input/output channels, an improved sampling period, and a wider range of pulse-shape time constants. See the full list of features below.

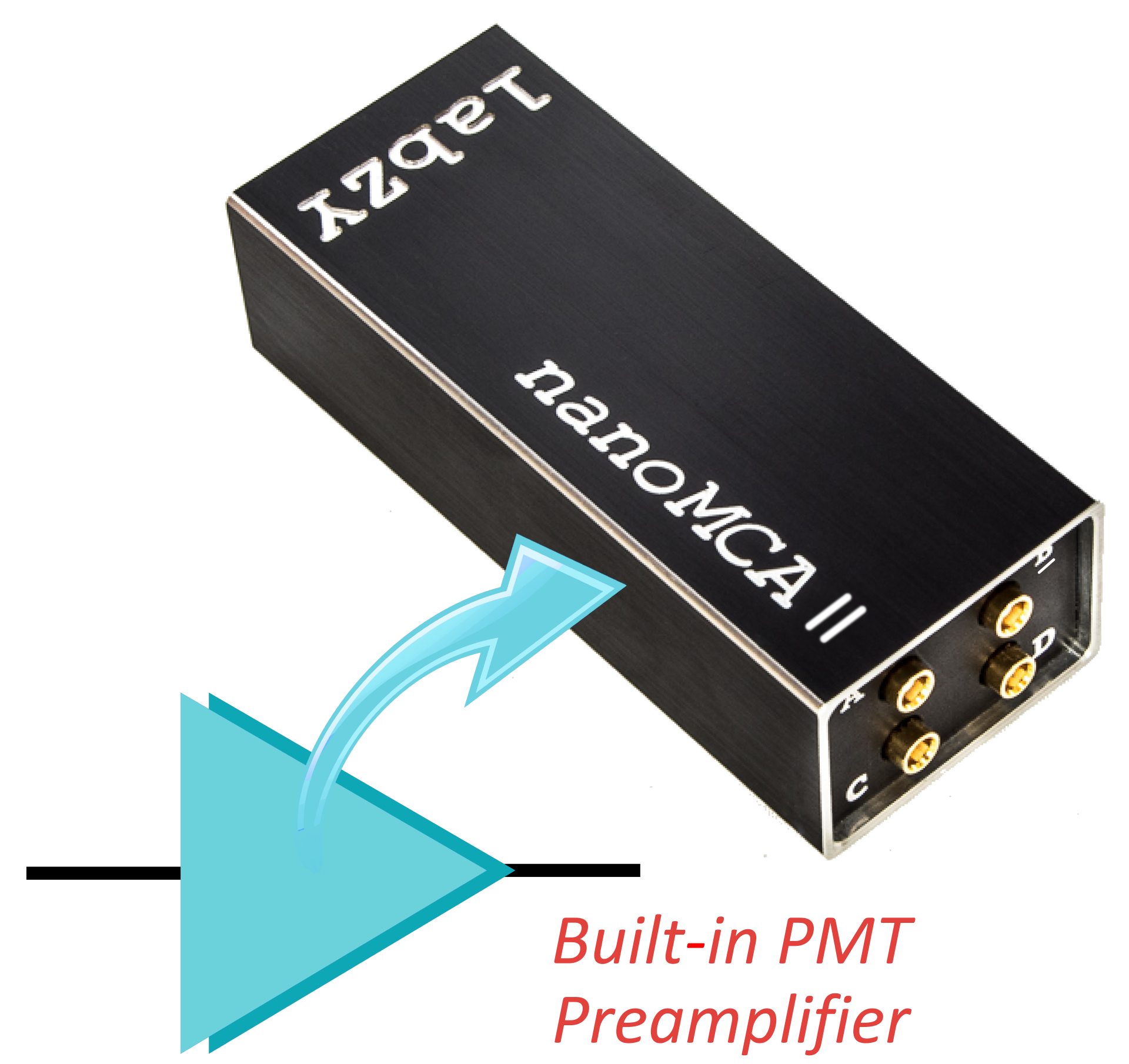

![](https://www.yantel.com/wp-content/uploads/nanoMCA-II-SPPREAMP2-teal2.png)
Features
The nanoMCA-II-SP is a state-of-the-art small, low power, ultra-high performance digital MCA with built-in preamplifier, featuring:
- Built-in preamplifier for scintillation detectors coupled to photo-multiplier tubes
- Full featured 80MHz Digital Pulse-Processing (DPP) Multichannel Analyzer (MCA)
- Two analog inputs supporting reset and resistive feedback preamplifiers and a photomultiplier anode sensing built-in preamplifier
- Pulse-Height Analyzer (PHA) mode allows for height analysis using analog shapers
- Free labZY-MCA software for device configuration, spectra acquisition, and spectrum analysis using the built-in Trace Viewer, the most advanced detector signal exploration tool
- Automatic functions: thresholds, pole-zero, input polarity, inhibit polarity
- Built-in coincidence logic with delays and coincidence window generator
- Convenient and flexible connectivity
- I/O: Single mini USB connector also power source
- Power: USB, mini wall adapter, or optional battery
- Device interface: Wired or wireless (USB, Ethernet, WiFi, Bluetooth)
- Exceptional temperature stability
- Small size (92 mm x 38 mm x 25 mm) and low power (850mW typ)
Data Sheet
Download the full nanoMCA-II-SP Data Sheet [pdf]
Enclosure | Dimensions: 3.6″ x 1.5″ x 1″ (92 mm x 38 mm x 25 mm) |
Spectrum Size | 16k channels |
Inputs and Outputs | Input A: Signals from RC Feedback Preamplifiers (exponential signal) |
DPP Sampling Period | 8 ns |
DPP Quantization | 16 bit |
DPP Time Constant | Primary (long) TC: 125 ns to 4.1 µs |
Coincidence Logic Signal | Input D or Input R |
Pulse Shapes | Trapezoidal/Triangular |
Pulse Shape Flat Top | Adjustable, 0 to 2 µs |
Automation | Pole-Zero, Thresholds, Input Polarity |
I/O Connector | Single mini USB for all interfaces |
Interface Connectivity | Wired: USB (also serves as power source), Ethernet |
Power Requirements | 5V@300mA for USB, 5V@1A wall plug |
Operating Power | 1350mW at 25°C and USB interface |
Temperature Operating Range | -20°C to +60°C |
Downloads
See the Support tab for supporting documentation
Software
- Download the latest labZY-MCA software [zip] (v8.50) for Windows
Hardware
- Download the latest Firmware version [zip] (v30.20)
- Download the latest nanoMCA-II-SP FPGA version [zip] (v8.4)
Support
Manuals
- Download the labZY-MCA Software User Manual (v8.50) [pdf]
- Download the labZY-SLO Software User Manual (v1.00) [pdf]
Performance

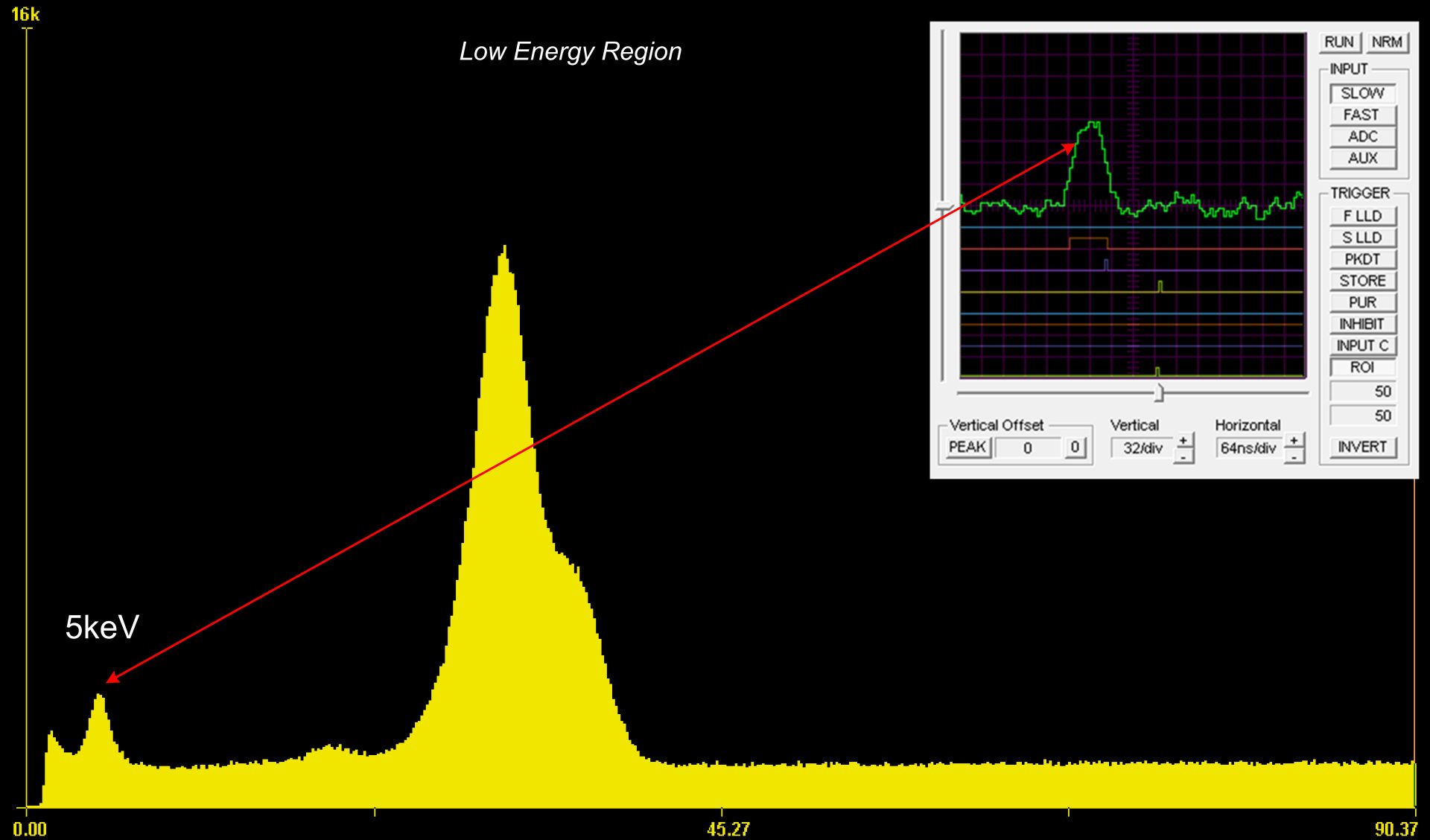

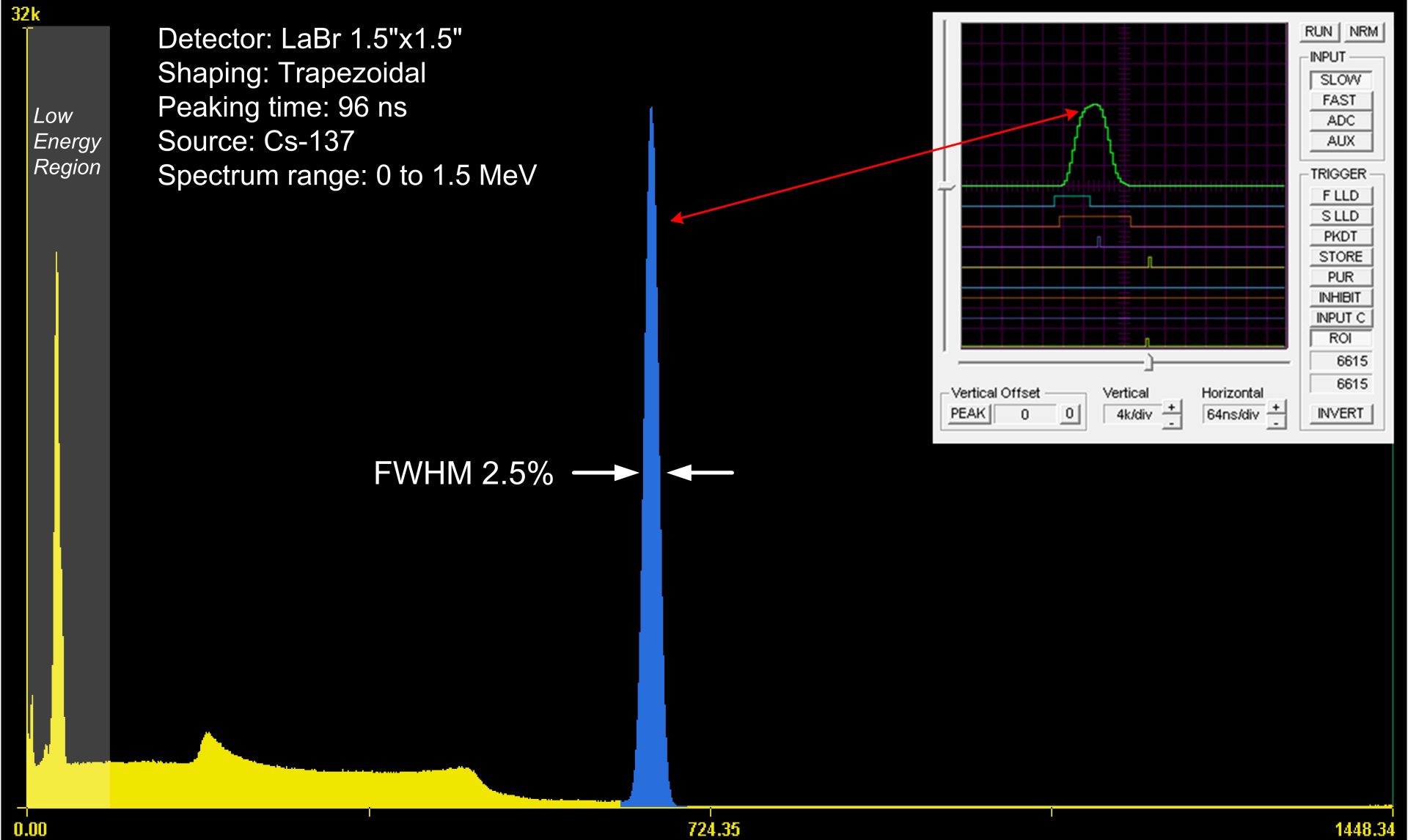

See below for nanoMCA-II-SP performance examples.
